KTM LC8 Oversized Water Pump Kit
This Product Ships From Switzerland šØš The oversized impeller is a component designed to increase the cooling capacity of the...
Controlla il prodotto se ĆØ soggetto a dogana
Prodotto spedito dalla Svizzera, soggetto a operazioni doganali (Iva calcolata al momento della ricezione del prodotto)
Couldn't load pickup availability
Vendor: ambro-racing
Type:
Sku: N/A
Descrizione Prodotto
This Product Ships From Switzerland šØš
The oversized impeller is a component designed to increase the cooling capacity of the system.
The Kit is made of black anodized 6082 aluminumĀ with a special base that lifts the lid increasing the flow rate (hydrodynamically tested) of the coolant by 52% and improving heat exchange.
This modification allows the bike to be put less (thermally) under less stress during hot periods without compromising anything during cold periods since the thermostatic valve is able to compensate for the increase in cooling (simply by remaining more closed).

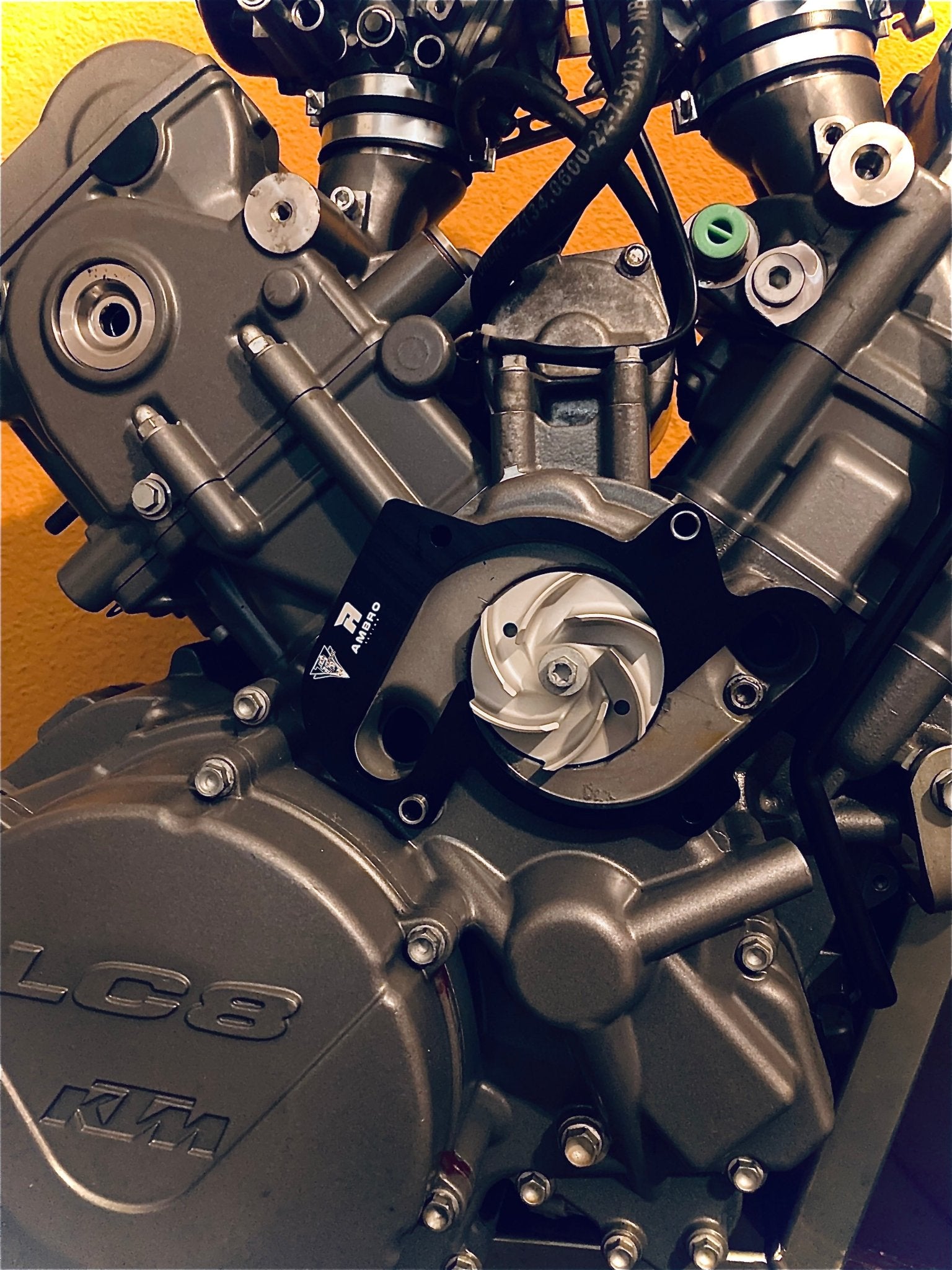

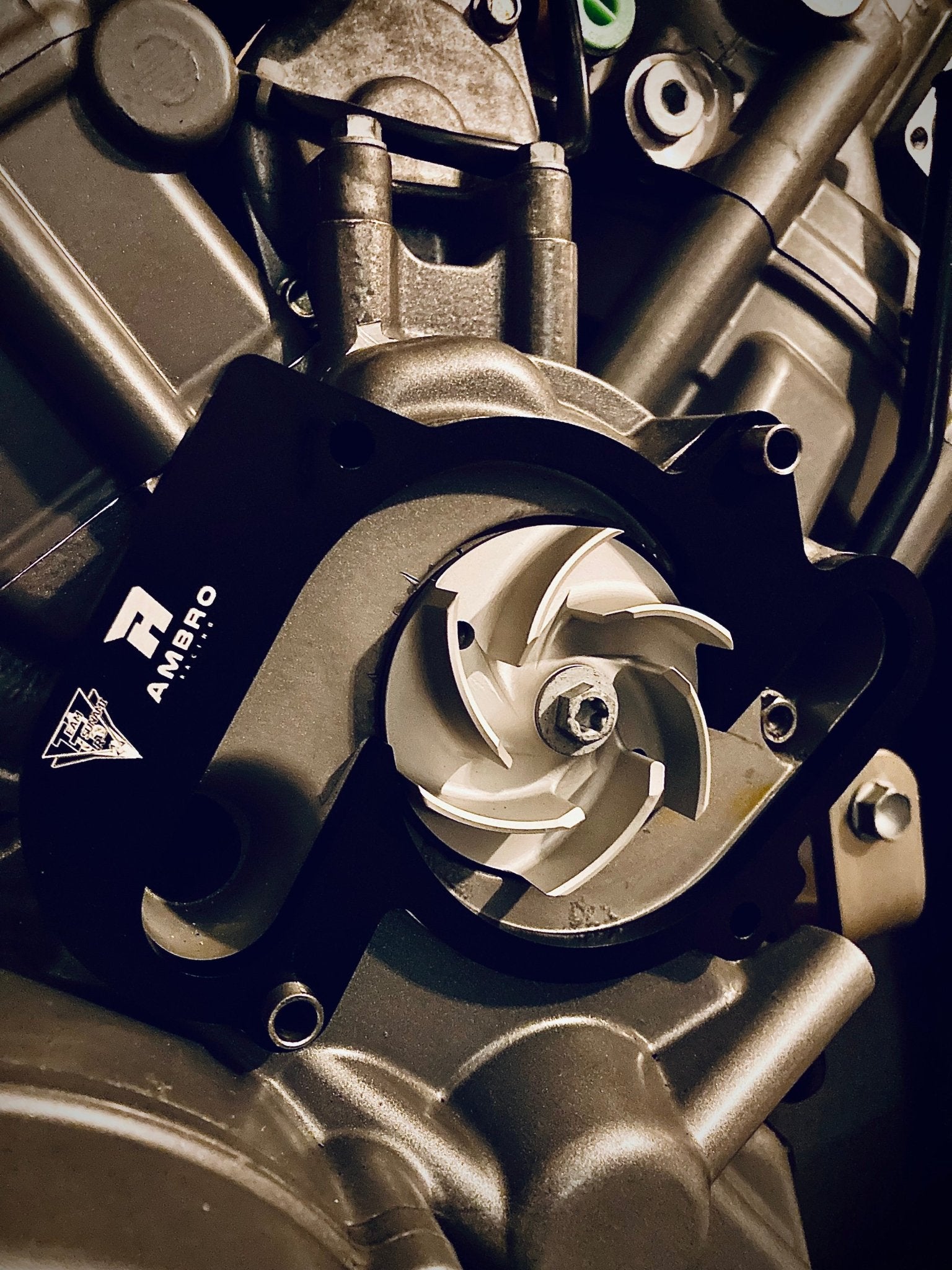

To increase the flow rate at the same engine speed, a simple increase in the surface area of āāthe impeller blades is used, obtained thanks to the insertion of a special spacer placed between the engine base and the water pump covers.

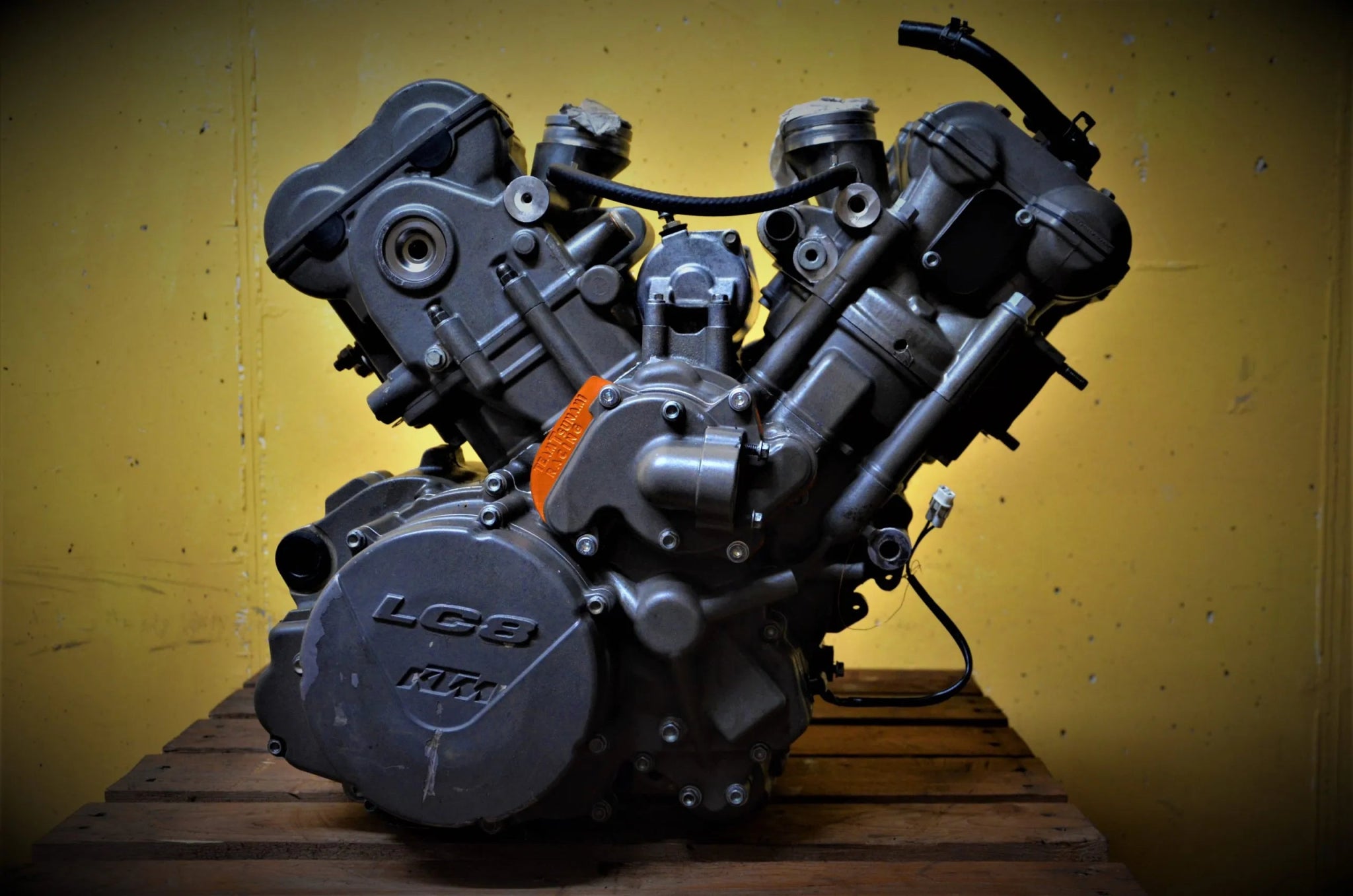

The Kit can be mounted on all LC8 enginesĀ :
KTM 950/990 Adventure 2003- 2013
KTM 950 Super Enduro 2006 ā 2008
KTM 950/ 990Ā Supermoto 2006 ā 2013
KTM 990 Supermoto T 2011 ā 2013
KTM 990 SM-T 2008 - 2011
KTM Superduke 990 2007 - 2011

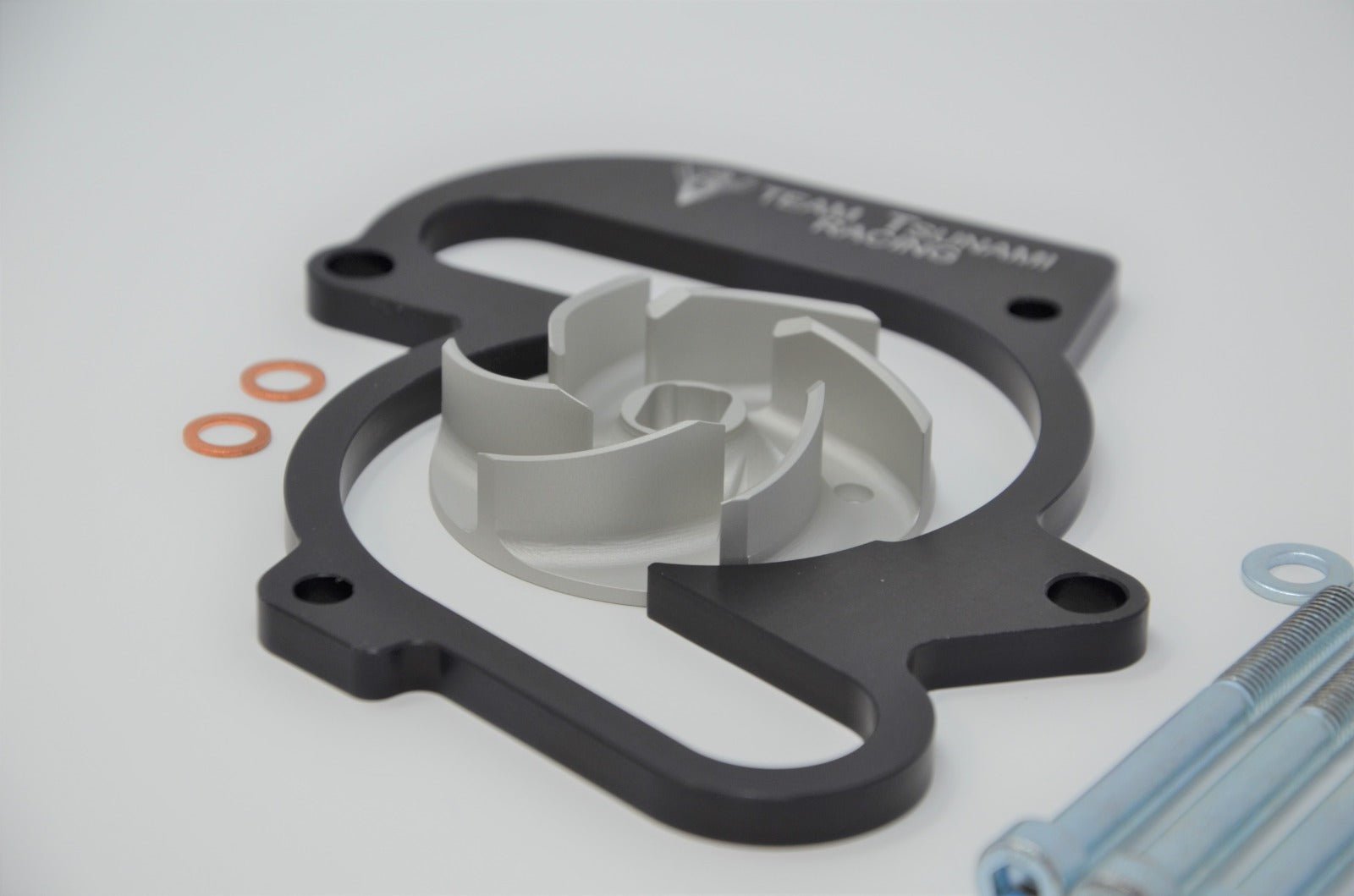

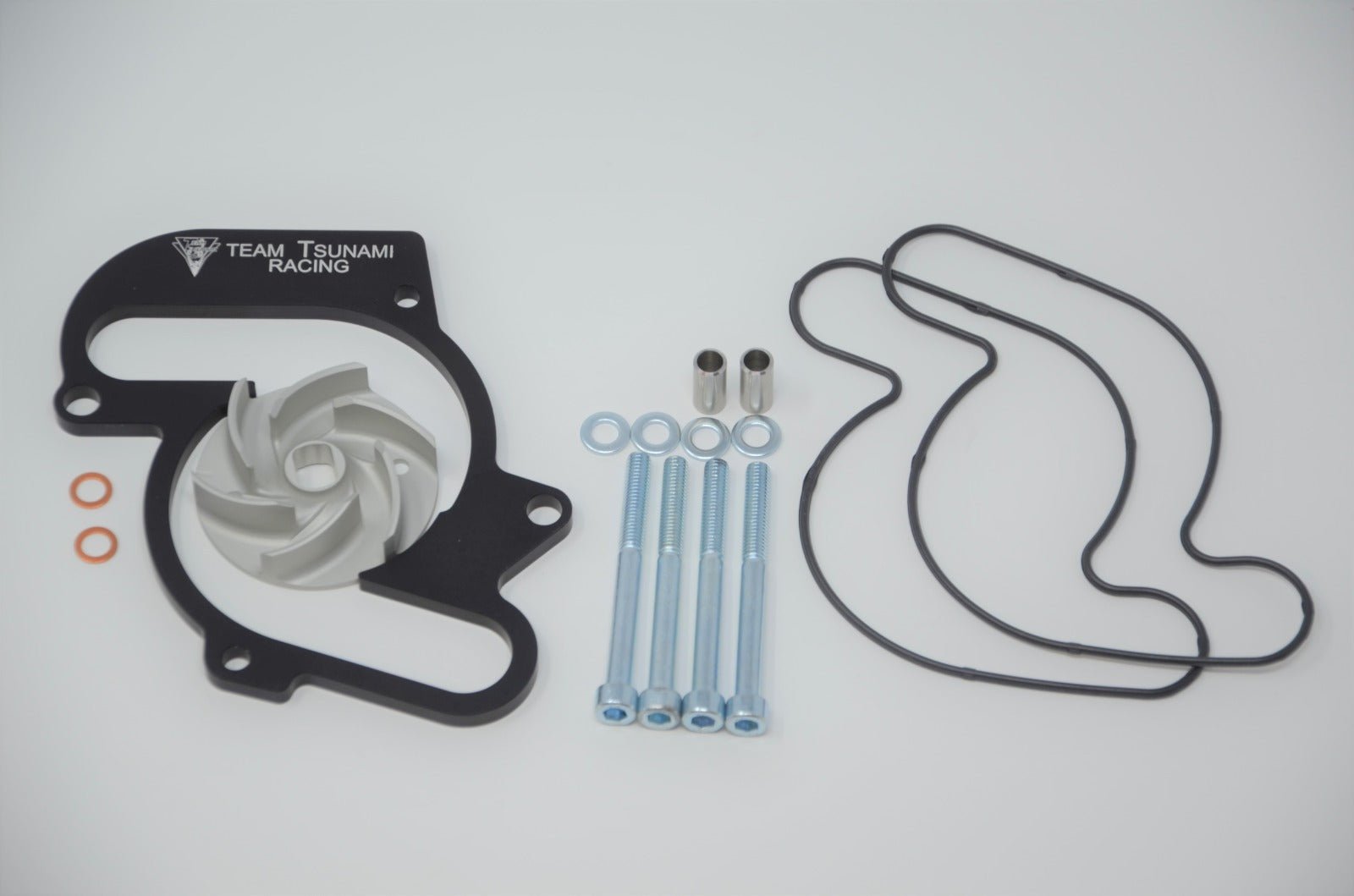

The Kit includesĀ :
Increased Impeller
Thickness 6mm
Gaskets 2 (Thickness ā Pump Cover)
Bolts
Washers
Centering Bushings
Copper washers
Installation instructions
Stickers
To be taken into consideration isĀ also the Complete Cooling Kit configured by the following optionĀ :
Oversized Water Pump Kit AMBRO RACING
Second Additional FanĀ (only for 950/990 Adventure 2003 ā 2013)
Radiator Fan Thermo Contact 98/93 FAE
